Base Type Open Diesel Generator Set Oil Tank H Insulation Grade

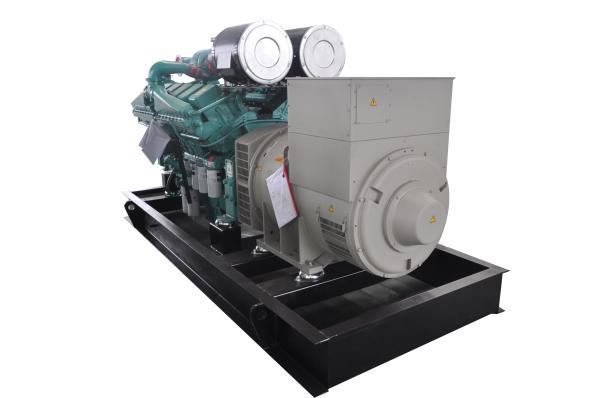

Rated Power 1350kWe Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as Stamford generator (STAMFORD) ,Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: deep sea controller (DSE)
4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.

6. "Zero" risk commitment: zero links in the middle, the most favorable price
7. It has a number of national patents and has the most advanced domestic experiment and testing equipment, and adopts advanced technology to make the product structure design more reasonable.
8. Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable.

9. The production of Huide Power generator sets is located in Gangyang Industrial Park. The company covers an area of 10000 square meters and is equipped with advanced product research and development and testing equipment

Engine Technical Datasheet
Engine Model	KTA50-G15X	3Brand	CCEC Cummins
Rated Power	1491kW	Number of Cylinders	16
Bore×Stroke	159mm×159mm	Governor	Electronic
Displacement	50Liters	Lubricant Capacity	204L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	S7L1D-E41	Brand	Stamford
Rated Power	1400kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional

Factory reserve
